Details and Specs

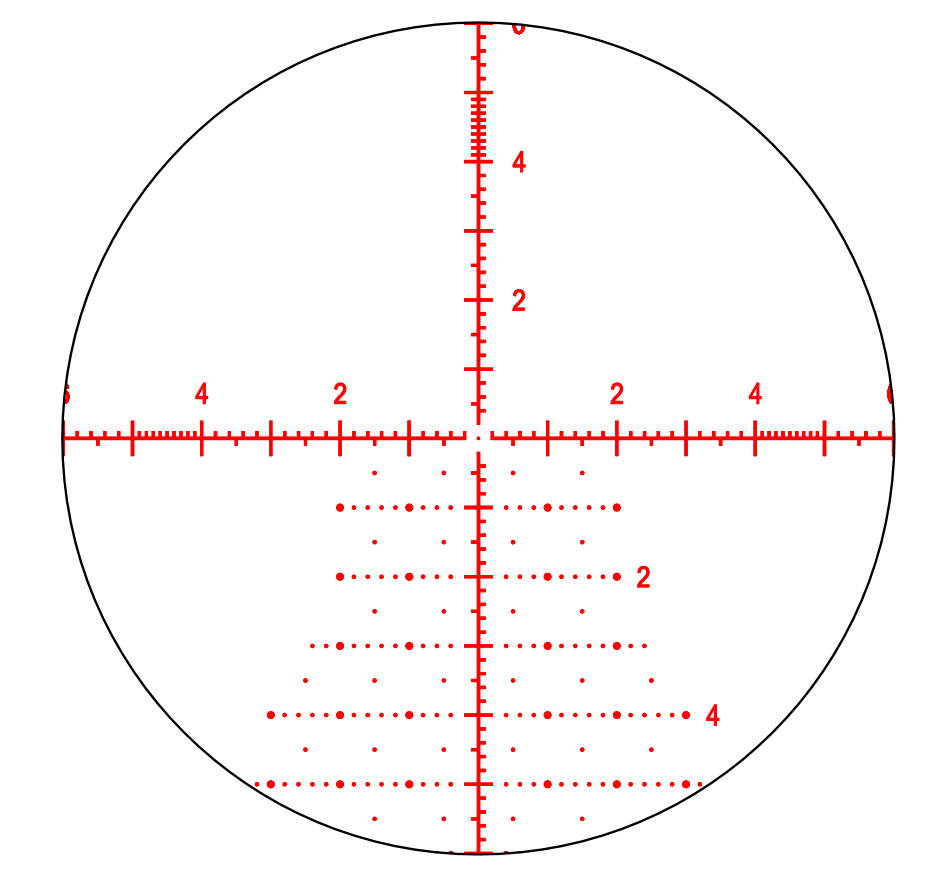

Glass Etched MRAD ELR Extreme Long Range Reticle
The MRAD ELR reticle is designed to allow the shooter to measure targets to determine the distance and then make corrections by either dialing or using the reticle for bullet drop compensation. The .04 MRAD Floating Center Dot does not obscure the target while still providing a precise aiming point. The Christmas Tree style reticle provides .2 MRAD windage and elevation correction holds for long range precision while also providing .5 MRAD correction for situations where speed is critical. Since the windage and elevation adjustments match the reticle values, you can easily make adjustments quickly and easily by using the reticle as a reference in relation to the impact of the bullet. The FFP (First Focal Plane) design allows you to use the reticle at any magnification. For accuracy, the reticle is broken up into .2 Miliradian increments as well as .5 Miliradian increments along the horizontal and vertical Crosshair with larger hash marks indicating 1 Mil increments. The upper vertical and horizontal crosshairs of the reticle also feature .1 Mil grids for extremely precise target measurement making the MRAD ELR reticle an incredibly versatile design. Image shown features the reticle while Illuminated.

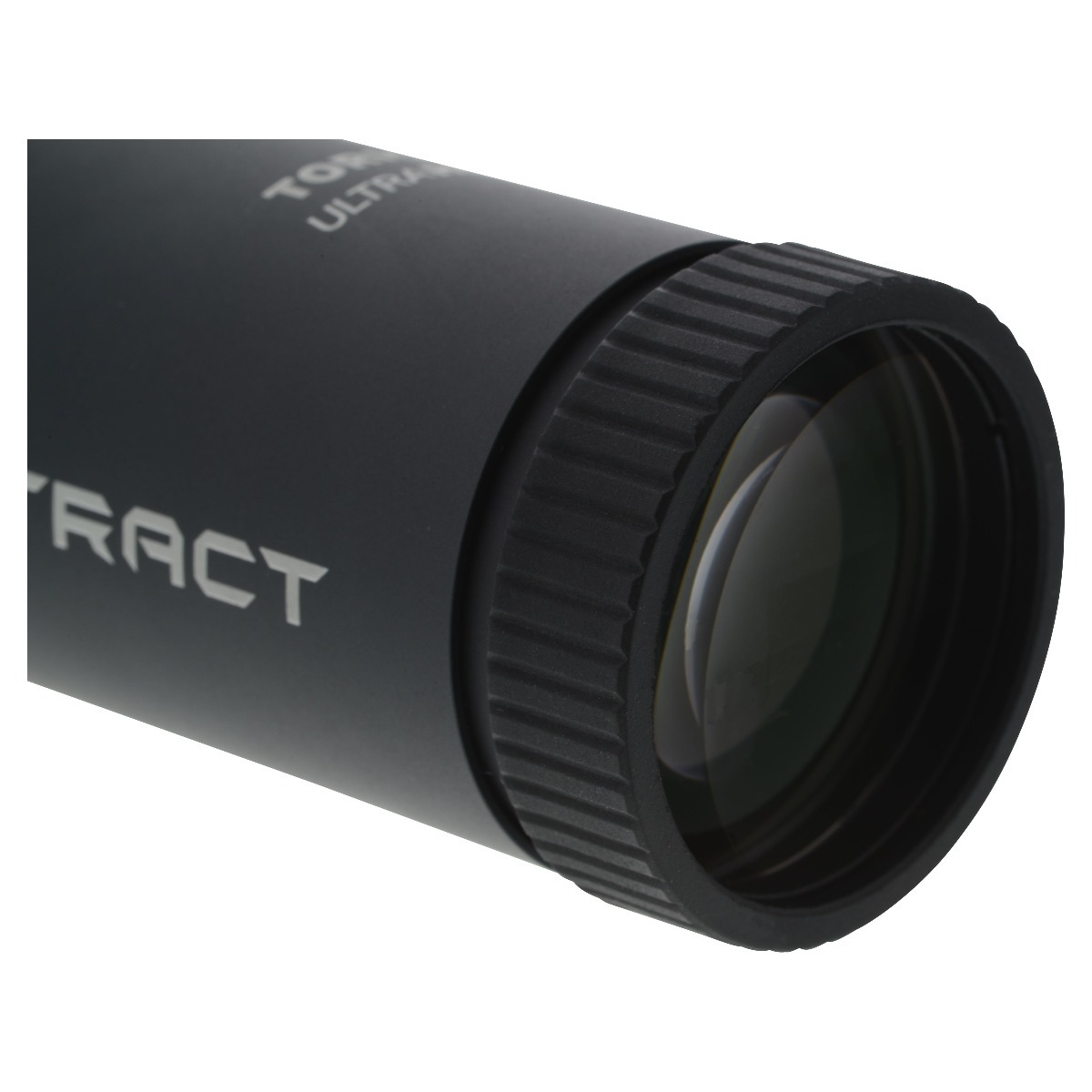

Ultra High Definition Technology
TRACT's Fully Multi-Coated, Ultra High Definition optical system, utilizes an extra low dispersion (ED) lens to eliminate color fringing as well as highly prized Schott HT (High Transmission) glass to provide superior light transmission and bright, clear images even in low light hunting conditions.
34mm Main Body Tube
The 34mm, one-piece tube provides greater strength and a wider adjustment range for extreme long range shooting
First Focal Plane Reticle (FFP)
First Focal Plane design places the reticle in front of the erector system and allows accurate use of the MRAD reticle for ranging or bullet drop correction at any magnification

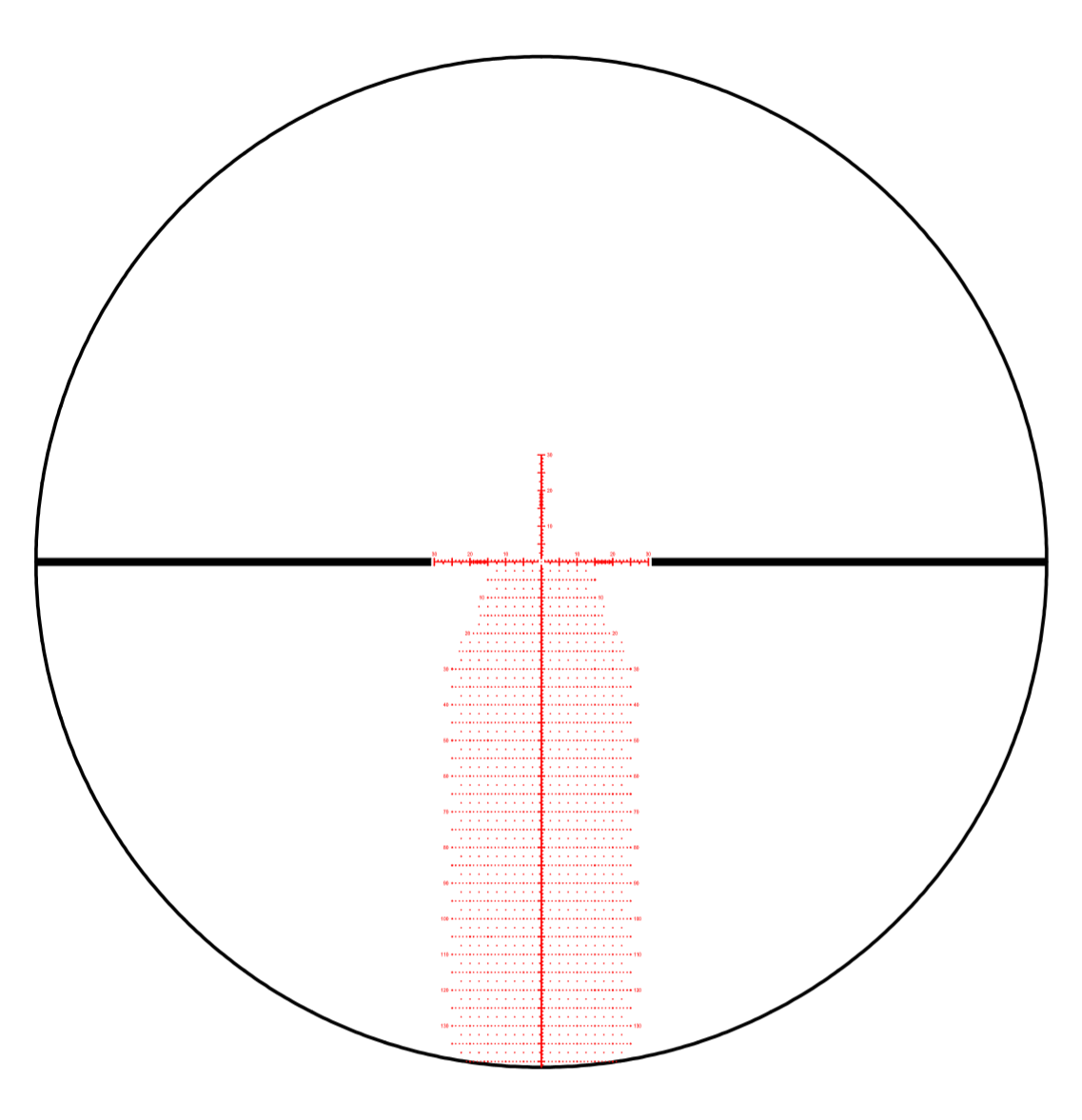

MRAD ELR Reticle
Christmas Tree style reticle provides a Floating Center Dot that does not obscure the target while providing a precise aiming point and .2 MIL windage and elevation correction with .5 MIL quick reference marks
Floating .04 Miliradian Center Dot
The .04 MRAD Floating Center Dot provides an extremely precise aiming point that does not obscure the target regardless of the size or distance

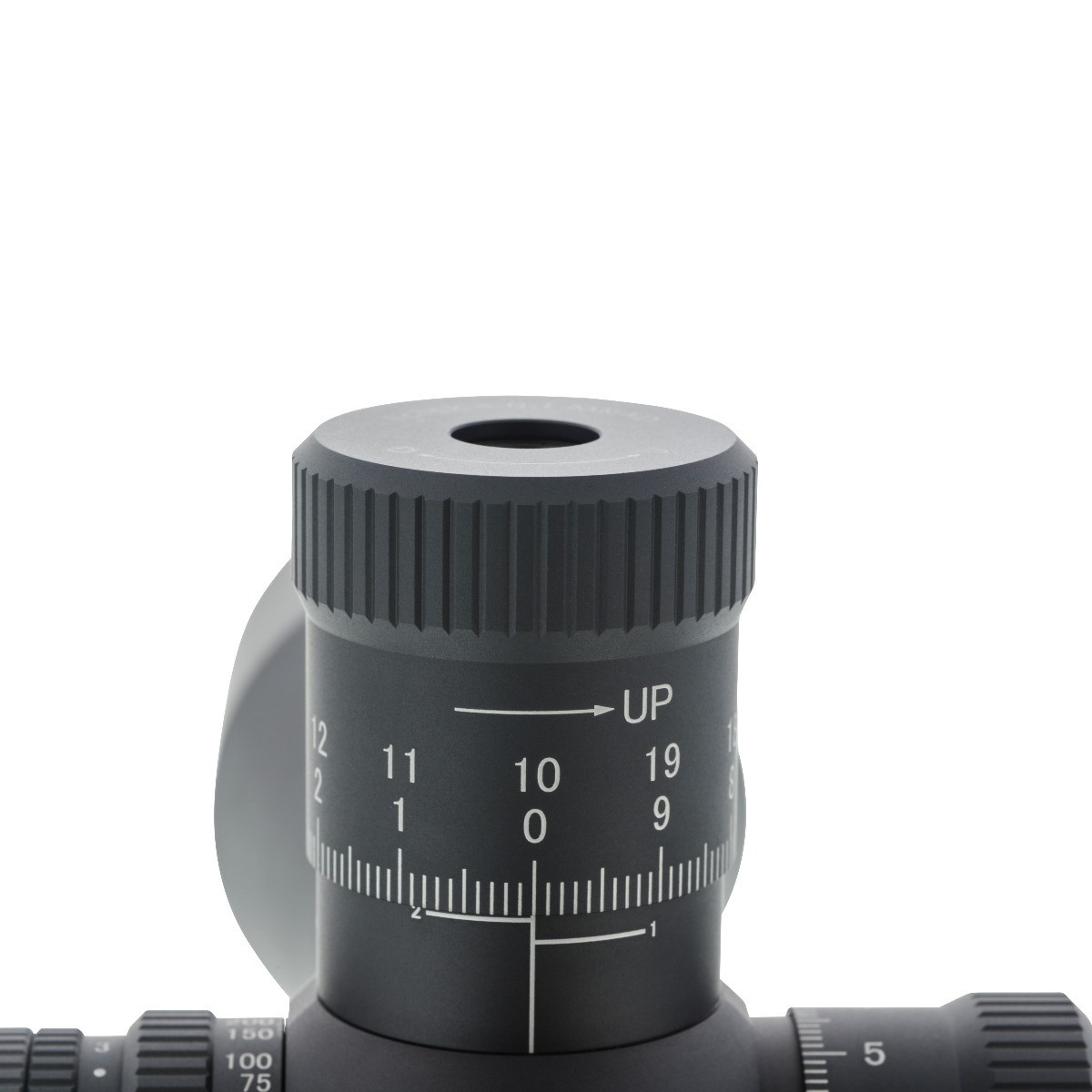

Locking Turret with Multi Rotation Zero Stop and 47 Mils of Total Elevation Adjsutment
Precision machined turret features .1 MRAD per click adjustments and a locking system to eliminate inadvertent movement of your adjustments in the field or at the range. Multi Rotation Zero Stop makes sure you do not get lost in the rotations when dialing those extreme long range shots. 47 Mils of Adjustment allows you to Dial for Days
Side Focus Parallax Adjustment
Side Focus allows you to dial out parallax from as close as 15 yards to infinity. Conveniently located for use while in the shooting position.
Illuminated Reticle Dial
Provides 11 different intensity settings with ON/OFF positions between each setting. The CR2032 battery with a expected life of 360 hours on medium intensity is included.
Waterproof and Fogproof with Argon Gas
Fully waterproof and Fogproof using O-Ring seals and purged with Argon gas which has a higher resistance to temperature changes versus the Nitrogen used in many other competitor's products.

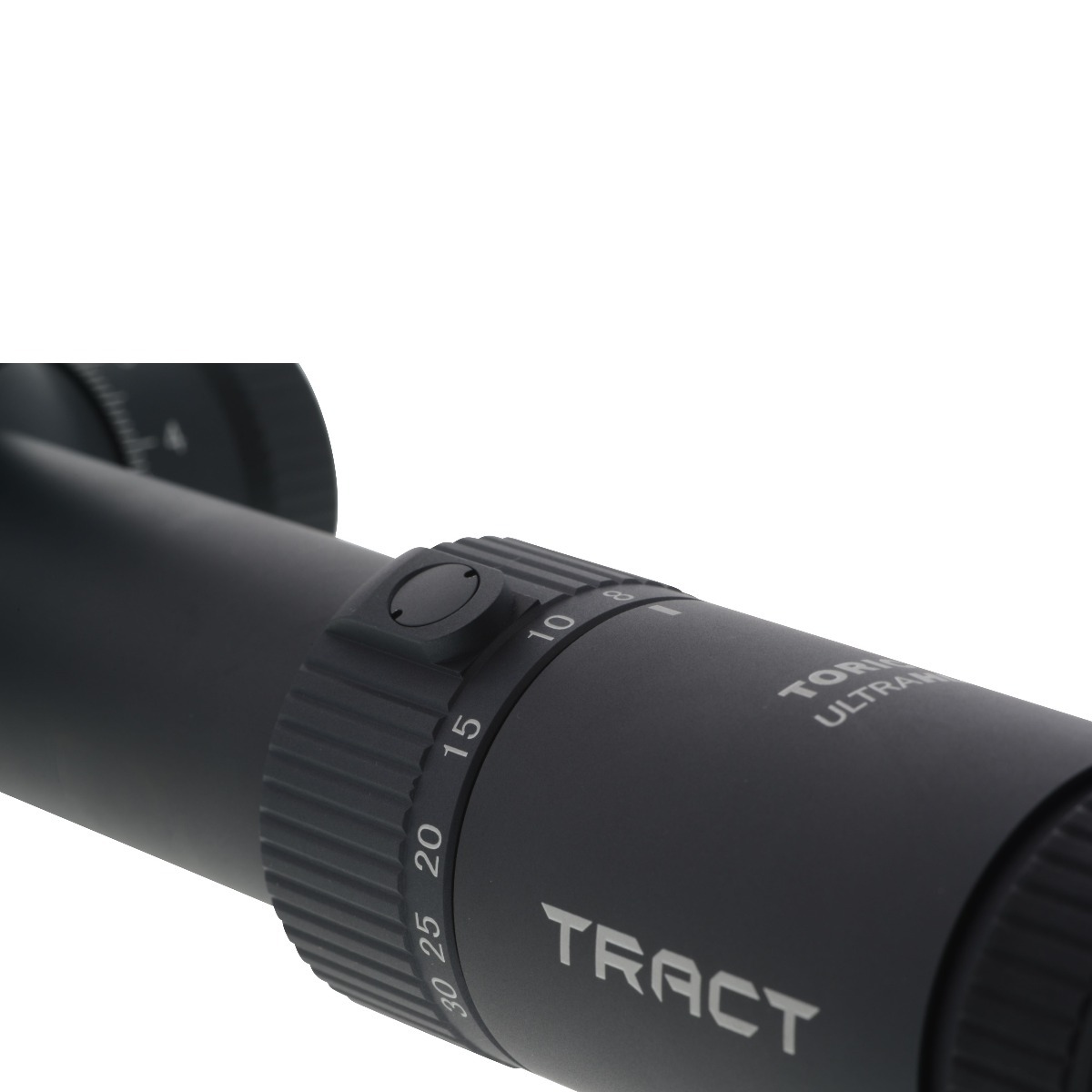

Magnification Ring
The super-smooth magnification ring, with rear facing numbers easily allows you to zoom from low to high power.
Quick Focus Eyepiece
Easily and quickly allows you to focus the sharpness of the reticle
Includes 3" Sunshade
Threaded sunshade reduces glare and minimizes game spooking reflections.
TRACT Trust Assurance Warranty
The TRACT Trust Assurance guarantees the functionality of the product for the duration of its lifetime regardless of whether you’re the original owner. No time limit applies and no paperwork is needed.
