22 FIRE 4-12X40 AO Extended Focus Range T-PLEX Dot Rimfire Rifle Scope

This NEW 22 FIRE 4-12x40 scope features an Adjustable Objective with an Extended Focus range from 10 meters to infinity. The T-Plex Dot reticle includes a fine crosshair with a .25" Dot (at 50 yards on 12x) for precise aiming and accuracy.

CA $375
Adding to cart… The item has been added
SKU
36

Performance Grade Optics

Direct from the Manufacturer

Precision Engineering

No Markup Added

Personalized Support

Details and Specs

This 22 FIRE 4-12x40 scope features an Adjustable Objective providing an Extended Focus range allowing the scope to focus from 10 meters to infinity. The T-Plex Dot reticle features a fine crosshair with a .25" Dot (at 50 yards on 12x) allowing precise placement of the reticle on typical competitive rimfire targets making this a perfect choice for competitive rimfire shooting.



Discover top-quality Rifle Scopes Binoculars Precision Gear Designed for hunters, shooters, and outdoor enthusiasts seeking precision and clarity. Visit our blog!



T-Plex Dot Reticle

T-Plex Dot Reticle

The T-Plex Dot reticle is designed for precision rimfire shooting and features a fine crosshair (.10") with a .25" Center Dot (subtensions at 50 yards at 12x) allowing precise placement of the reticle on typical competitive rimfire targets. The thick posts provide fast target acquisition and allow your eye to find the center of the reticle quickly and easily.

Main Body Tube

Main Body Tube

The one-inch, two-piece tube is O-ring sealed and purged with argon gas, making it completely waterproof and fogproof.

Fully Multi-Coated Technology

Fully Multi-Coated Technology

TRACT'S Fully Multi-Coated (FMC) optical system applies multiple layers of anti-reflective compounds to every air to glass surface to provide extremely high light transmission with bright, clear images even in low light.

Magnification Ring

Magnification Ring

The super-smooth magnification ring, with rear facing numbers easily allows you to zoom from low to high power.

Windage and Elevation Adjustment Knobs

Windage and Elevation Adjustment Knobs

Hand Turn windage and elevation adjustments with precise, repeatable and audible 1/4" clicks at 50 yards are easily reset to zero without any tools, making sighting in or field adjustments quick and easy. Customize your riflescope with an Impact Custom Turret allowing you to dial in the distance for long range shooting.

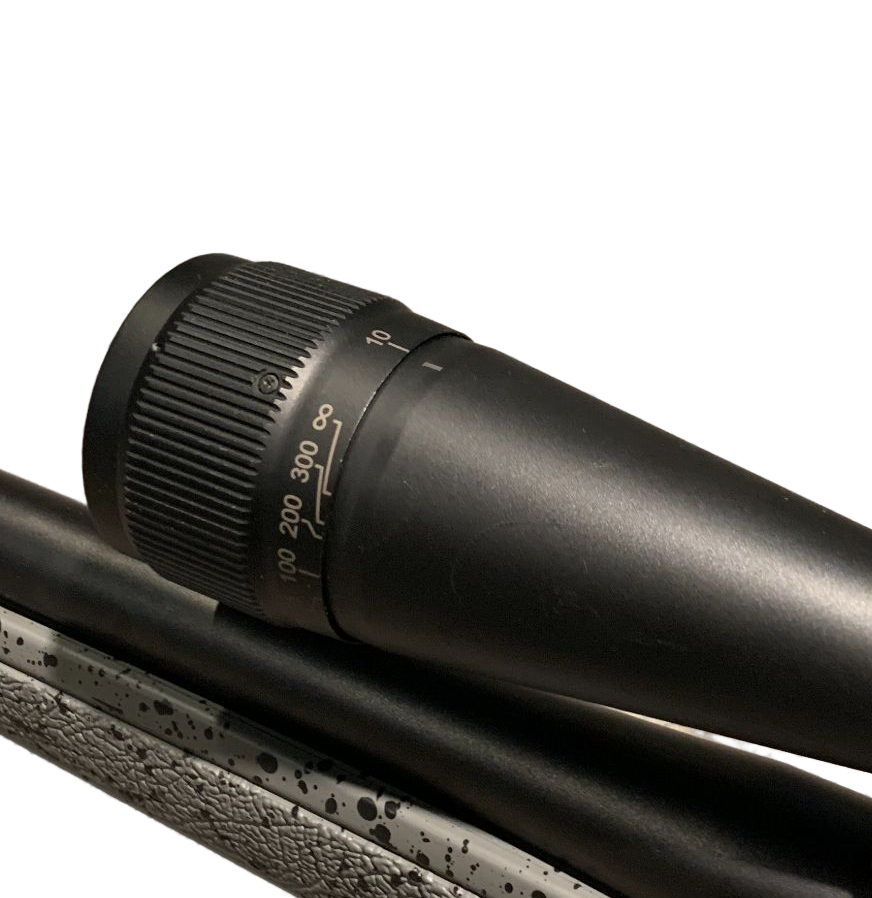

Adjustable Objective for Extended Focus Range

Adjustable Objective for Extended Focus Range

Features an adjustable objective providing an Extended Focus range allowing the scope to focus from 10 meters to infinity.

T-Plex Dot Reticle

T-Plex Dot Reticle

The T-Plex Dot reticle features a fine crosshair with a .25" Dot (at 50 yards) allowing precise placement of the reticle on typical competitive rimfire targets.

Spring Loaded Reset to Zero

Spring Loaded Reset to Zero

Simply lift the turret, turn to line up the zero with the vertical indicator, release and the turret springs back into place

Quick Focus Eyepiece

Quick Focus Eyepiece

Easily and quickly allows you to focus the sharpness of the reticle

Waterproof and Fogproof with Argon Gas

Waterproof and Fogproof with Argon Gas

Fully waterproof and Fogproof using O-Ring seals and purged with Argon gas which has a higher resistance to temperature changes versus the Nitrogen used in many other competitor's products.

Sunshade (not included)

Sunshade (not included)

Add an accessory sunshde to minimize glare and reflections. Quicky and easily threads into the objective and can be removed when not needed.

Rings (not included)

Rings (not included)

Don't forget to add rimfire rings if using a 3/8" or 11mm dovetail or standard WEAVER style rings if using a Weaver base or Picatinny rail. NOT INCLUDED

TRACT Trust Assurance Warranty

TRACT Trust Assurance Warranty

The TRACT Trust Assurance guarantees the functionality of the product for the duration of its lifetime regardless of whether you’re the original owner. No time limit applies and no paperwork is needed.

Magnification 4-12X
Objective Lens Diameter 40mm
Eye Relief (inches) 3.5 / 3.5
Exit Pupil 10 / 3.3
Field of View (@1,000 yards) 341 feet
Field of View (Low Power/High Power in feet @ 100 yards) 23.5 / 7.8
Relative Brightness 11.11
Twilight Factor 21.9
Diopter Range +/- 3
Length (inches) 13.9
Weight (ounces) 16
Internal Adjustment Range (MOA) 60
Click Value (MOA) .25 at 50 yards
Tube Diameter 1 inch (two piece)
Reticle Type Electro-formed Copper Wire
Coatings Fully Multi-coated
Recoil Shock Endurance 1,000g
Operating Temperature Range 158°F to -1.4°F
Internal Charge Argon Gas
Parallax Setting 10 yards to Infinity
Finish Black Matte
Reticle Focal Plane 2nd
Eyepiece Outside Diameter 1.74 inches
Objective Outside Diameter 2.05 inches
Objective Diameter (millimeters) 40
Mount Space 5.9 inches
Waterproof Depth (meters) 3
Butler Creek Flip Up Cover Objective Size 31 (not included)
Butler Creek Flip Up Cover Eyepiece Size 19 (not included)
Country of Origin Philippines
